DBM Universal Spring Cylinder Detail - Three Body Styles

A new, patented tool has become key to solving the puzzles encountered in machine and fixture design and build. It's the DBM Universal Spring Cylinder-The "Adaptomizable" Spring Plunger." Available in 3 styles: Threaded, Non-threaded and Guided (twin plungers), each style is available in 4 sizes and 2 spring forces. Special designs and spring forces can be supplied as well. Please contact us for a prompt quotation.

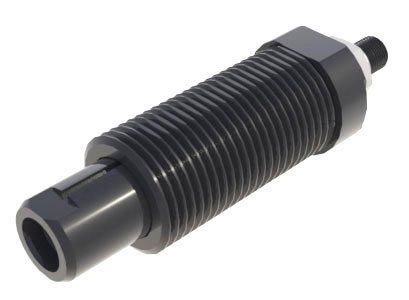

Threaded Style

Choose the Threaded Style for ease of mounting (please see our examples on the Applications tab).

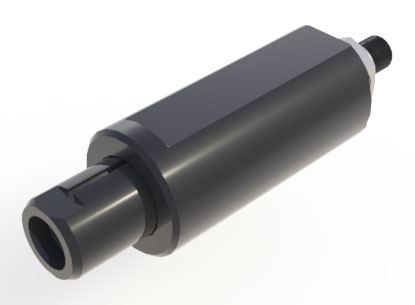

Non-Threaded Style

In the Non-Threaded Style, the inaccuracies inherent with thread runout are avoided because the cylinder body has an accurate outside diameter. This is important for locating applications requiring a spring-loaded pin (please see our examples on the Applications tab).

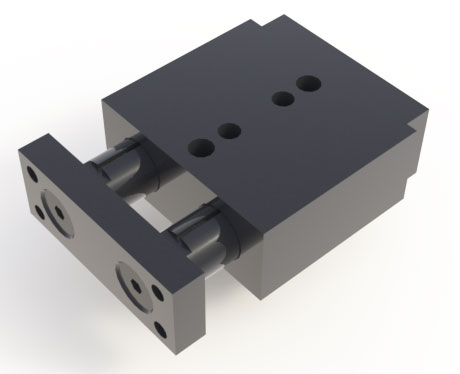

Guided Style

The Guided Style is designed with twin plungers to prevent rotation and accommodate offset loads. It has tooling plates with dowel pin holes for accurately mounting attachments. Please see our examples on the Applications tab.
